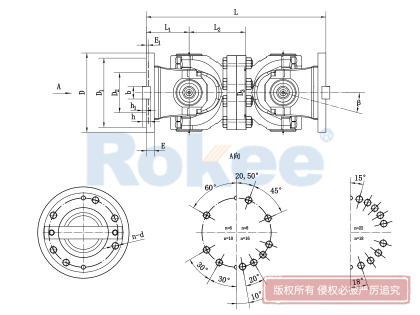

SWP-C无伸缩短型十字万向轴

  • SWP-C无伸缩短型十字万向轴
  • SWP-C无伸缩短型十字万向轴

SWPC型十字轴万向联轴器基本参数

型号回转直径公称转矩疲劳转矩轴线折角尺寸/mm转动惯量
I/kg.m²
重量
m/kg
D mmTn kN.mTf kN.mβ (0)
LD1(js11)D2(H7)EE1bXhh1L1n-d
SWP160C160168≤103401409515420X126856-130.1131
SWP180C1802010≤1038015510515424X147956-150.1742
SWP200C 20031.516≤1044017512517528X1681108-150.2959
SWP225C 2254020≤1052019613520532X1891308-170.5180
SWP250C2506331.5≤1054021815025540X2512.51358-190.93119
SWP285C 2859045≤1060024517027740X30151508-211.88179
SWP315C31514063≤1068028018532740X301517010-232.88232
SWP350C 35018090≤1074031021035850X321618510-234.59300
SWP390C 390250112≤1082034523540870X361820510-258.64432
SWP430C 435355160≤10940385255421080X402023516-2817.41688
SWP480C 480450224≤101060425275471290X4522.526516-3128.25904
SWP550C 550710315≤1011604923205012100X4522.529016-3149.491309
SWP600C 6001000500≤101440544380551590X5527.536022-3487.171377
SWP640C 6401250630≤1015405753856015100X603038518-38152.762635
