SWP-D无伸缩长型十字万向轴

  • SWP-D无伸缩长型十字万向轴
  • SWP-D无伸缩长型十字万向轴

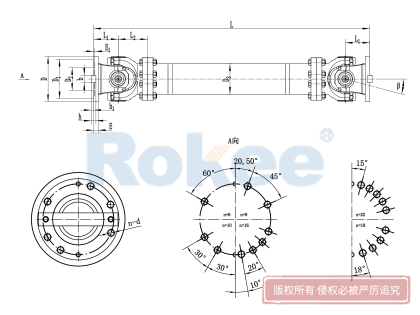

SWPD型十字轴万向联轴器基本参数

型号回转直径公称转矩疲劳转矩轴线折角尺寸/mm转动惯量I/kg.m²重量m/kg
D mmTn kN.mTf kN.mβ (0)
LminD1(js11)D2(H7)D3EE1bXhh1L1n-dLmin增长100Lmin增长100
SWP160D160168≤104301409511415420X126856-130.090.0059352.1
SWP180D1802010≤1047415510512115424X147956-150.160.0072472.3
SWP200D 20031.516≤1054417512512717528X1681108-150.280.00114673.4
SWP225D 2254020≤1063619613515220532X1891308-170.530.029946.6
SWP250D2506331.5≤1069021815016825540X2512.51358-190.910.04071407.3
SWP285D 2859045≤1076024517019427740X30151508-211.910.07022069.4
SWP315D31514063≤1086028018521932740X301517010-233.390.114427112
SWP350D 35018090≤1094031021024535850X321618510-235.350.166335513.6
SWP390D 390250112≤10106034523527340870X361820510-2510.540.269550118
SWP435D 435355160≤101180385255299421080X402023516-2818.560.364582520
SWP480D 480450224≤101360425275351471290X4522.526516-3131.690.7028114428
SWP550D 550710315≤1014604923204025012100X4522.529016-3151.451.1842158935.7
SWP600D 6001000500≤101840544380450551590X5527.536022-3483.531.7159224340.5
SWP640D 6401250630≤1019805753854806015100X603038518-38135.62.308314048.3
