SWC-WD无伸缩短型十字万向轴

  • SWC-WD无伸缩短型十字万向轴
  • SWC-WD无伸缩短型十字万向轴

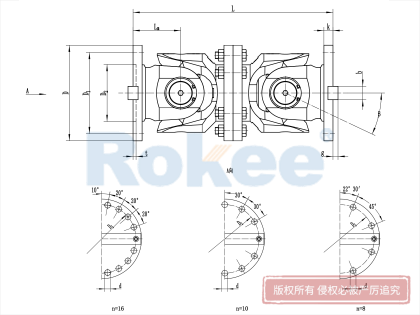

WD型无伸缩短式万向联轴器基本参数和主要尺寸(JB/T 5513-91)/mm

型号回转直径D公称转矩
Tn/KN·m
疲劳转矩
Tt/kN·m
轴线折角
β/(°)≤
LD1
(js11)
D2
(H7)
Lmn-dktb(H9)g转动惯量
I/kg·m²
质量
m/kg
SWC180WD18012.56.3254401551051108-17175

0.14552
SWC225WD2254020154801961351208-172053290.35582
SWC250WD2506331.5155602181501408-192564012.50.831127
SWC285WD2859045156402451701608-2127740151.715189
SWC315WD315125631572028018518010-2332840152.82270
SWC350WD350180901577631021019410-2335850164.791370
SWC390WD3902501251586034523521510-2540870188.229524
SWC440WD44035518015104039025526016-284210802015.32798
SWC490WD49050025015108043527527016-3147129022.525.741055
SWC550WD55071035515122049232030516-31501210022.546.781524
SWC620WD620100050015136055538034010-3855121002583.762120
型号回转直径D公称转矩
Tn/KN·m
疲劳转矩
Tt/kN·m
轴线折角
β/(°)≤
LminD1
(js11)
D2Lmn-dk
β=5°β=10°β=5°β=10°
SWC680WD68014007105°,10°1340144063555033536024-2555
SWC780WD780250012501480162072564037040524-3162
SWC840WD840315016001700192077571042548024-3870
SWC920WD920400020001840192085576046048024-3880
SWC1000WD1000500025002060214091584051553520-5090
SWC1100WD11006310315022802400101592057060020-50100
SWC1200WD120080004000248026401100100062066020-58110
